54-Inch UV & Thermal Silicone Coating Lines | Live Demos | ETI

CONTACT US

Our expertise

With over 20 years of experience, a steadfast commitment to innovation and a bit of rebelliousness, we created a whole new way for label printers and converters to do business.

Today, we offer the equipment, innovation and solutions you need to create and manufacture leading- edge products that stand out.

In-house web coating

Giving you the innovation, independence and ability to manufacture labels from A to Z.
Process

The experience, vision, and track record to build unique machines according to your specific needs.
Quality control & assurance

The testing, equipment, training and solutions to ensure every label you produce is exceptional.

ETI-Converting-Equipment-employees

Driven by a vision to deliver more

Innovation right down the line

Cohesio

Premium narrow-web printing, coating and converting machine for inline label manufacturing.
LinerO
Linerless label manufacturing equipment to produce sustainable VIP & prime labels of all kinds.
Acuro

Flexible narrow- and mid-web coating and laminating machine for labelstock and tape manufacturing.

Metronome

Flexo printing and die-cutting equipment for inline PSA label manufacturing.
Custom solutions

Custom web coating equipment to create and manufacture made-to-measure labeling products.

Capabilities

Come see it in action.
Experience the technology firsthand.

Our latest custom-engineered silicone coating lines bring together advanced coating capabilities and two different curing technologies:

54-inch (1.3 m) UV silicone coating line view specs →
54-inch (1.3 m) thermal silicone coating line view specs →

Before these impressive lines make their way to our customers, we're opening our doors for you to explore their capabilities and see the equipment in operation.

The video features our 54-inch UV silicone coating line.

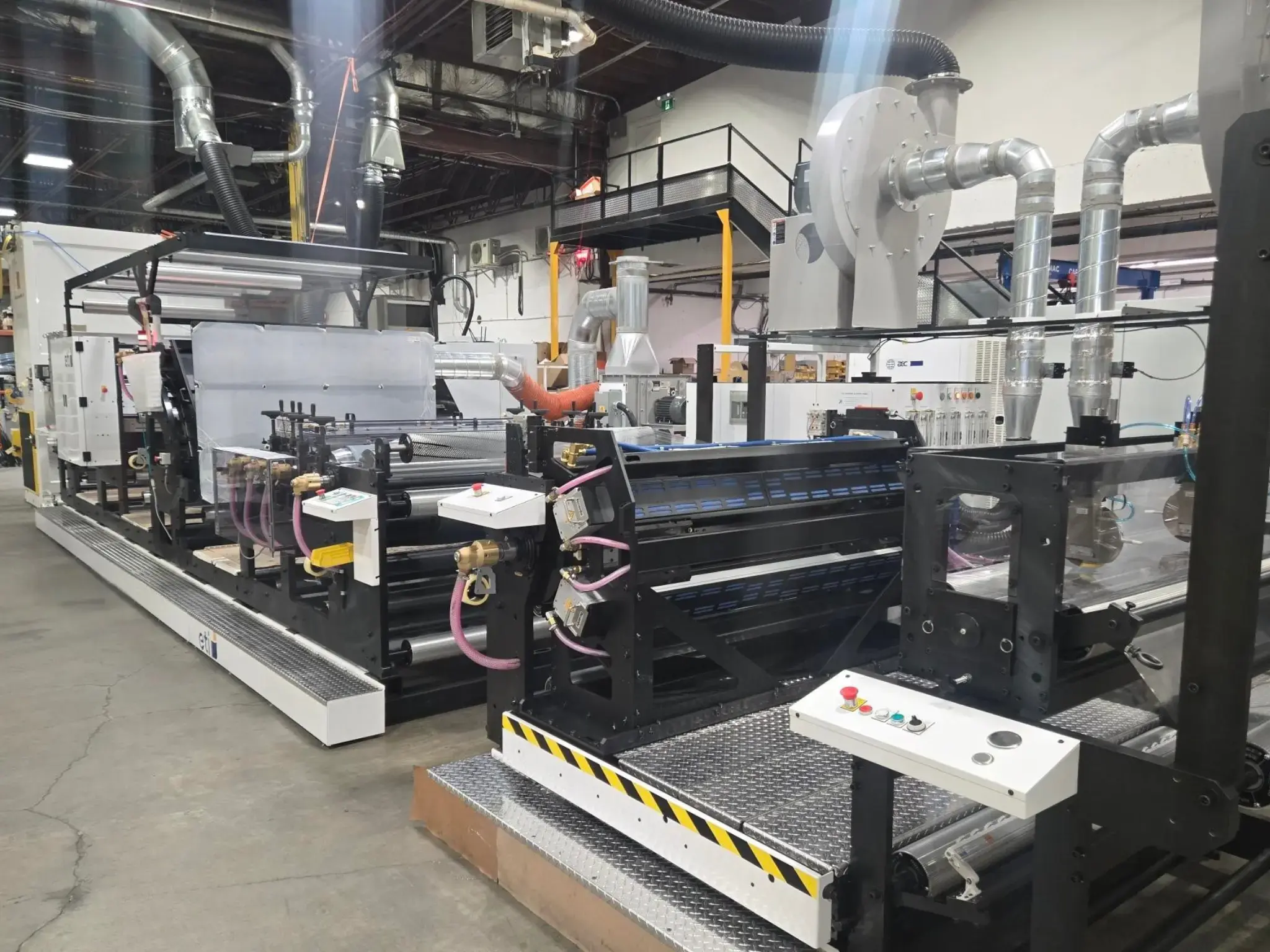

ETI SILICONE LINE_1

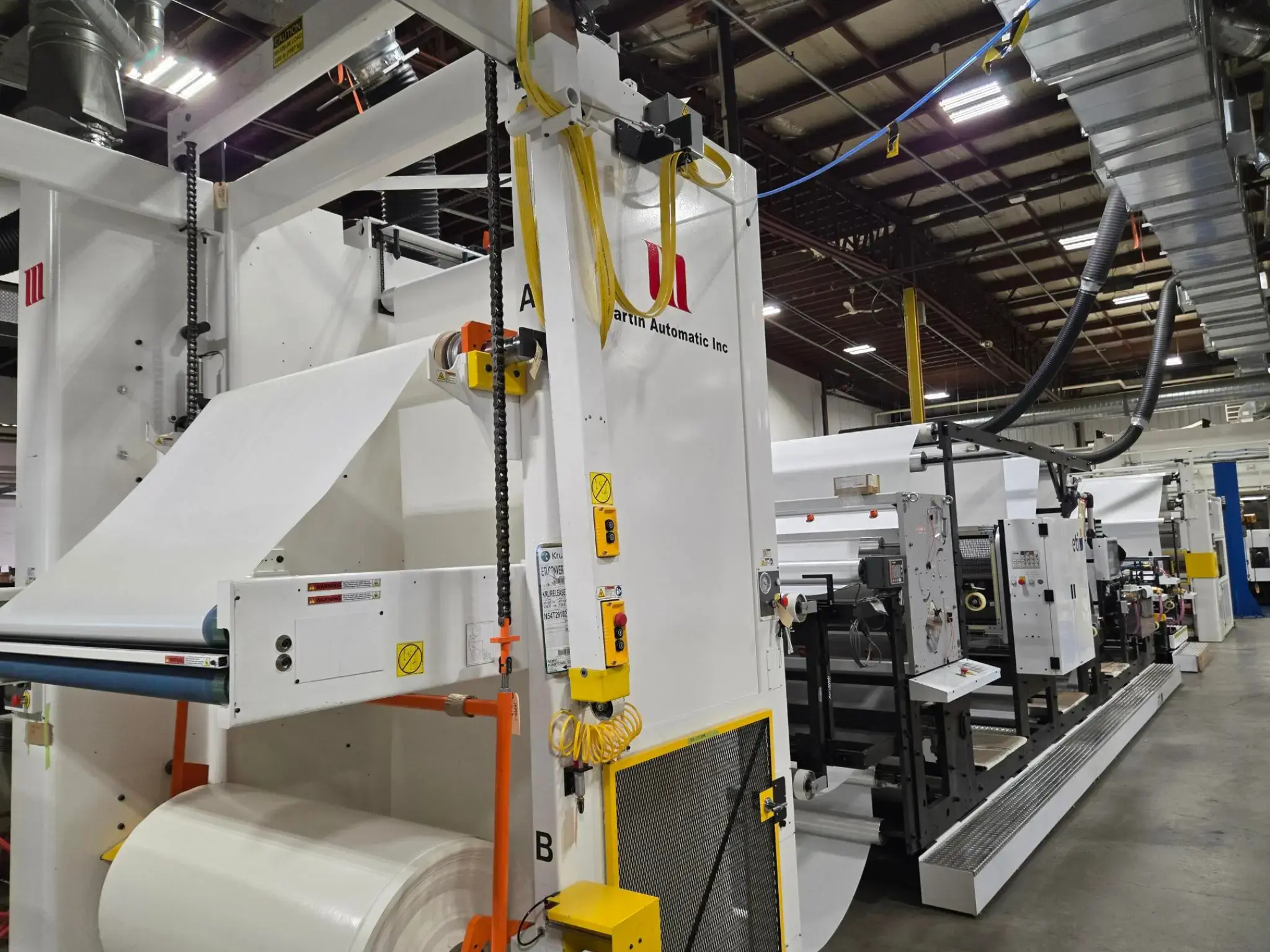

ETI SILICONE LINE_2

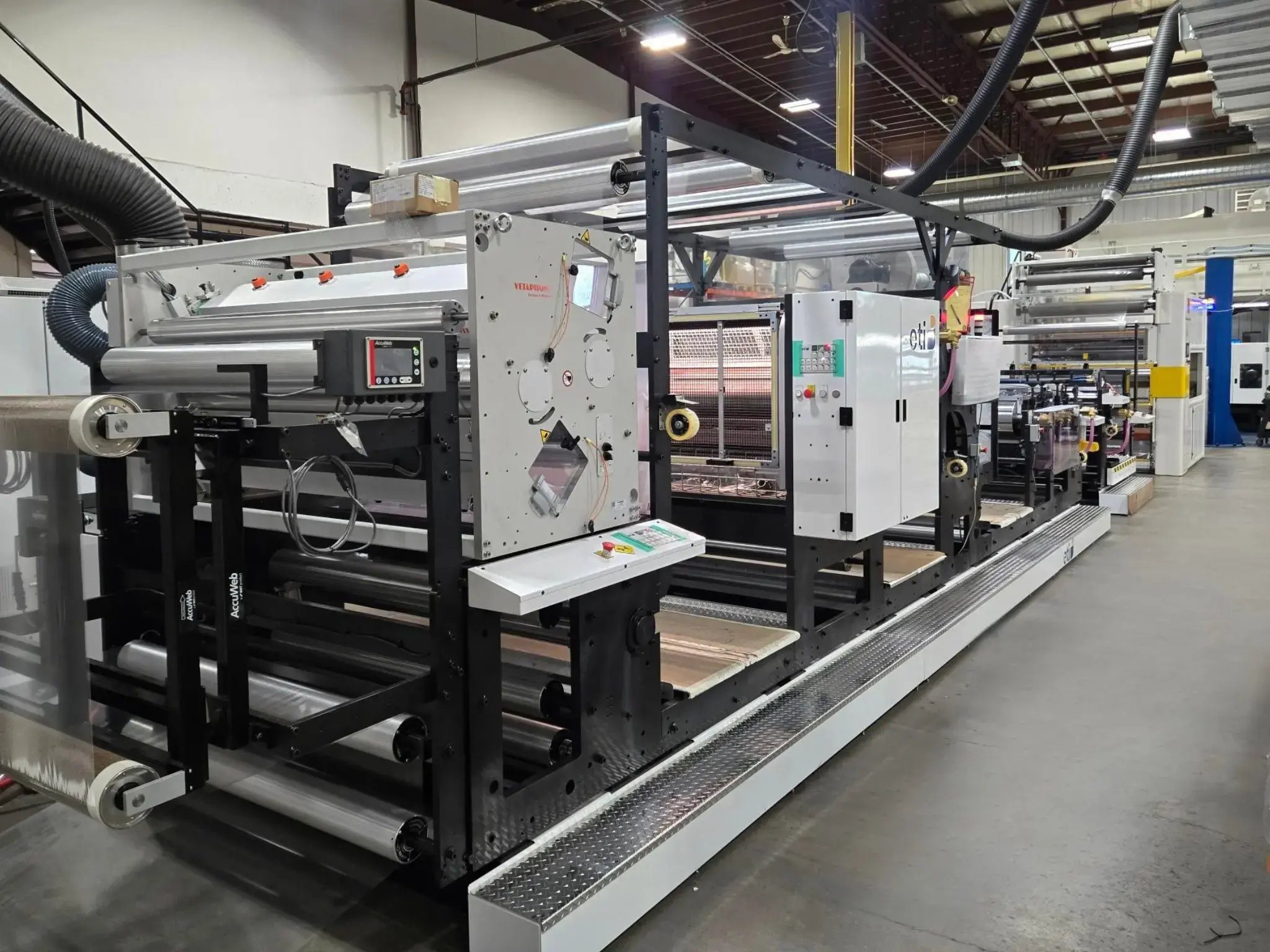

ETI SILICONE LINE_3

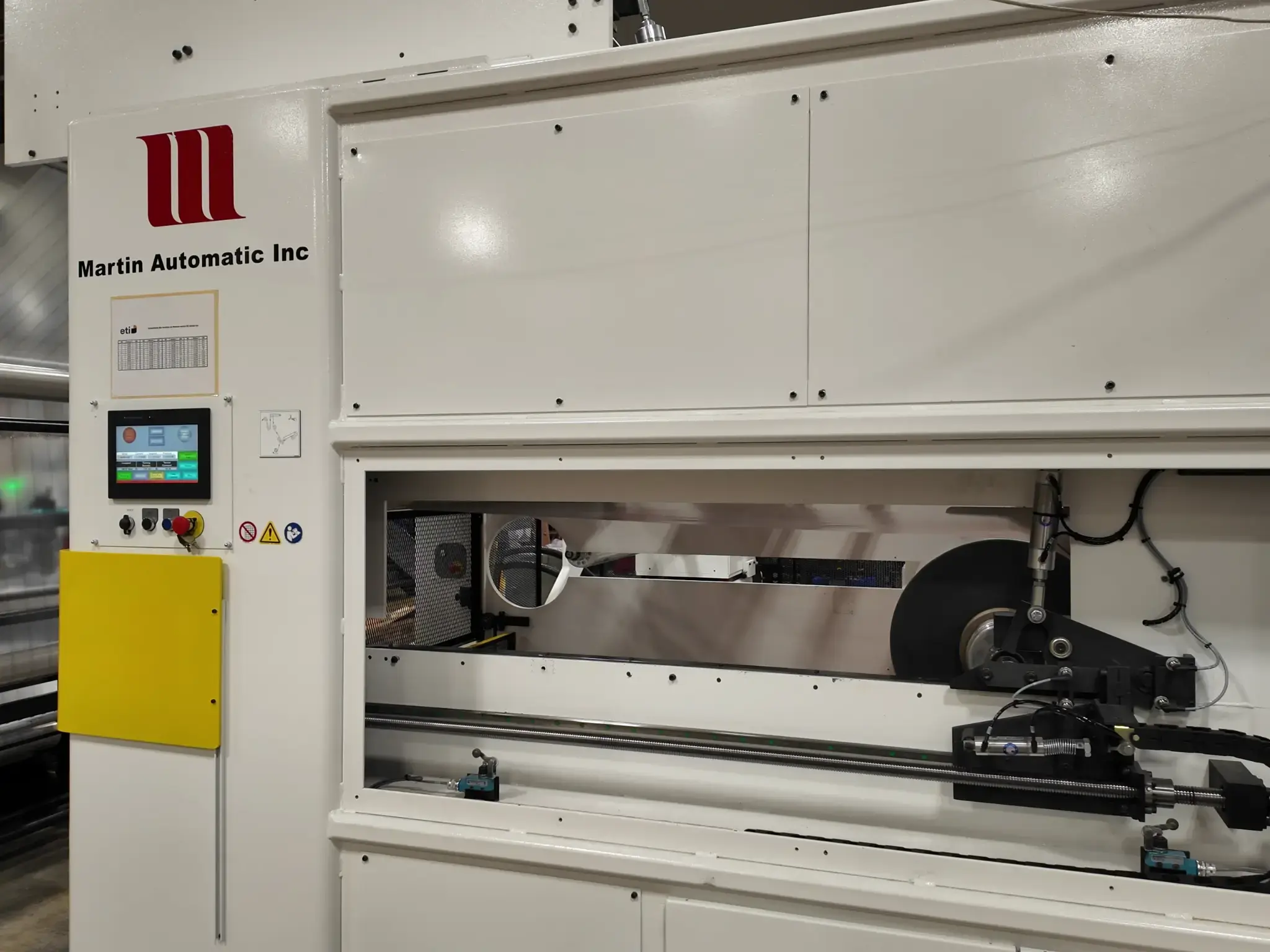

ETI Silicone Line 4

Each line is custom-engineered around a specific end product, combining the technologies and capabilities needed to manufacture it while offering the flexibility to adapt to different production requirements.

54-inch UV Silicone Coating Line

One (1) ECPF Martin Automatic Lap Splicer
One (1) Flexo XL printing station w/ hot air dryer for water-based inks
One (1) 5-roll silicone coating station (range: 0.4 - 2.5 g/m²)
One (1) nitrogen chamber
One (1) shear slitting system
One (1) LRH automatic transfer rewind system.

Optional slitting into two rolls, rewound on a common shaft.

Specifications:

Maximum printing width: 54.5. in (1385 mm)
Maximum coating width: 54.25 in (1380 mm)
Maximum paper width: 54.5 in (1385 mm)
Maximum mechanical speed: 800 ft/min (250 m/min)
Servo motorized
Suitable for various paper and film substrates

54-inch Thermal Silicone Coating Line

One (1) Unwinder, 50 in. maximum roll diameter
One (1) 3-roll silicone coating station (range: 0.7 - 2.5 g/m²)
One (1) Horizontal arched curing oven, 30 ft.
One (1) Rewinder, 50 in. maximum roll diameter

Specifications:

Maximum coating width: 54.25 in (1380 mm)
Maximum paper width: 54.5 in (1385 mm)
Maximum mechanical speed: 500 ft/min (150 m/min)
Servo motorized
Suitable for various paper and film substrates

Schedule Your Visit

We have availability in November and December for on-site visits and demonstrations.

Can't make it in person? We can also arrange a remote demonstration.

Complete the form below, let us know which option works best for you, and we'll find a convenient time.
